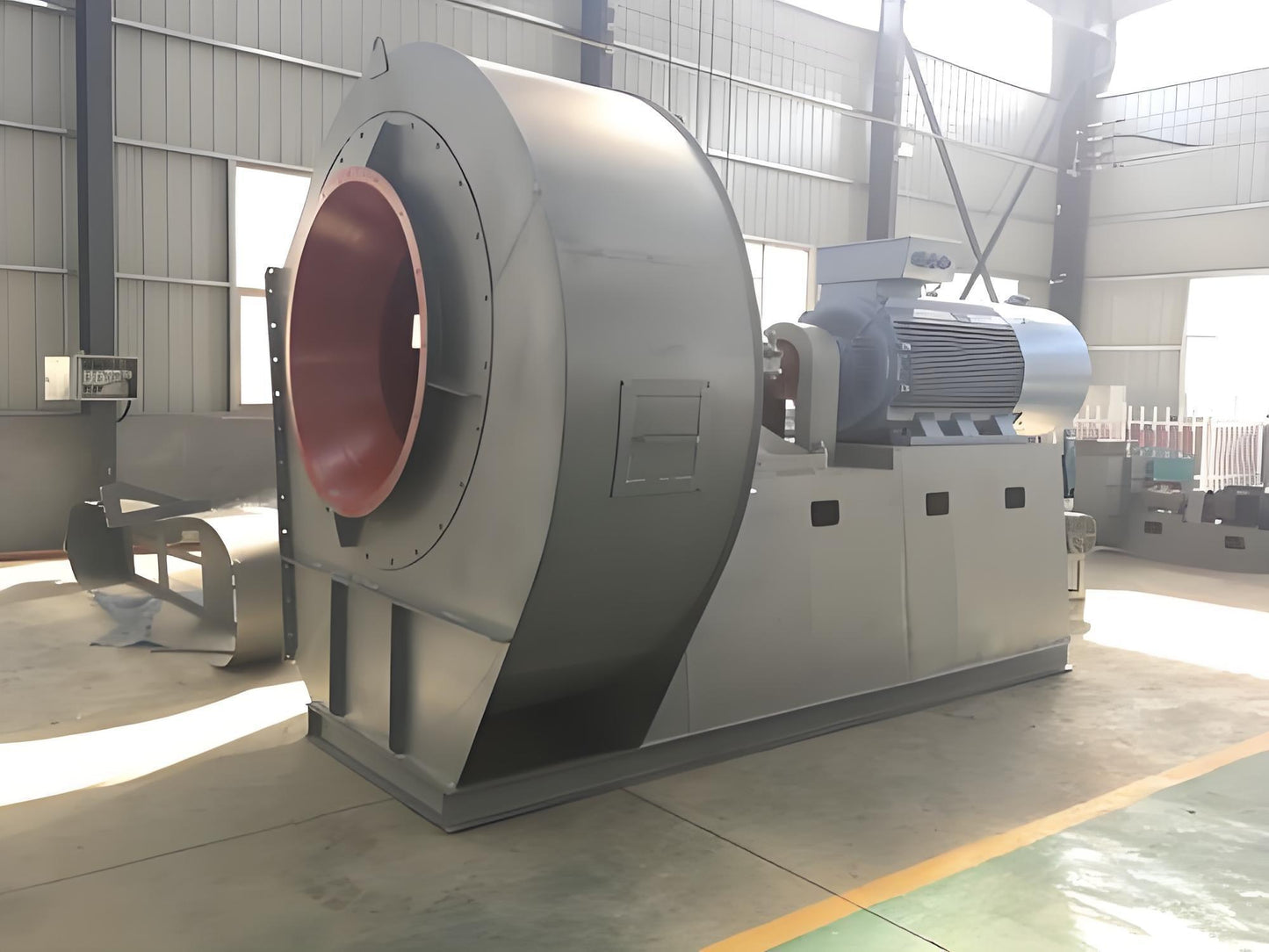

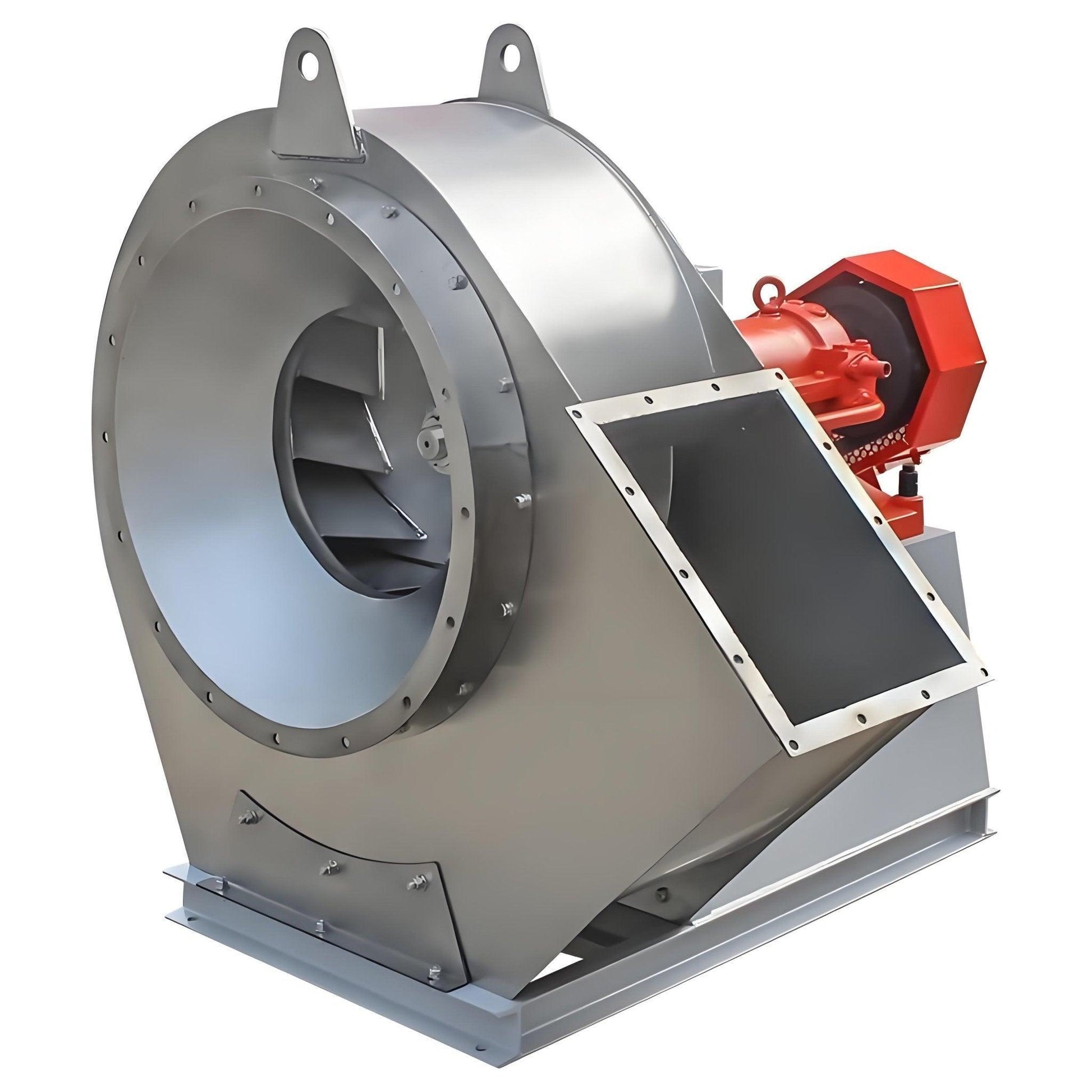

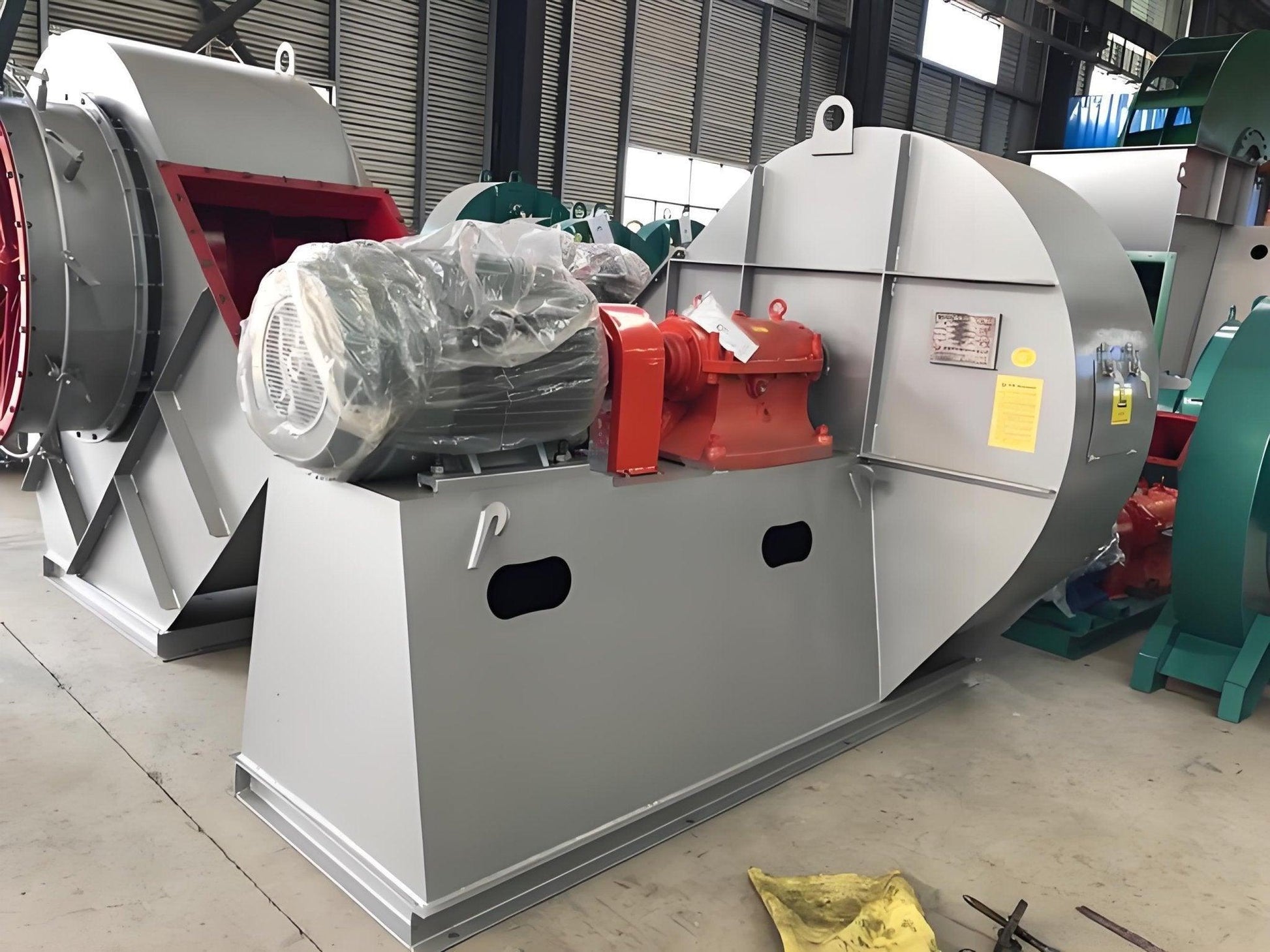

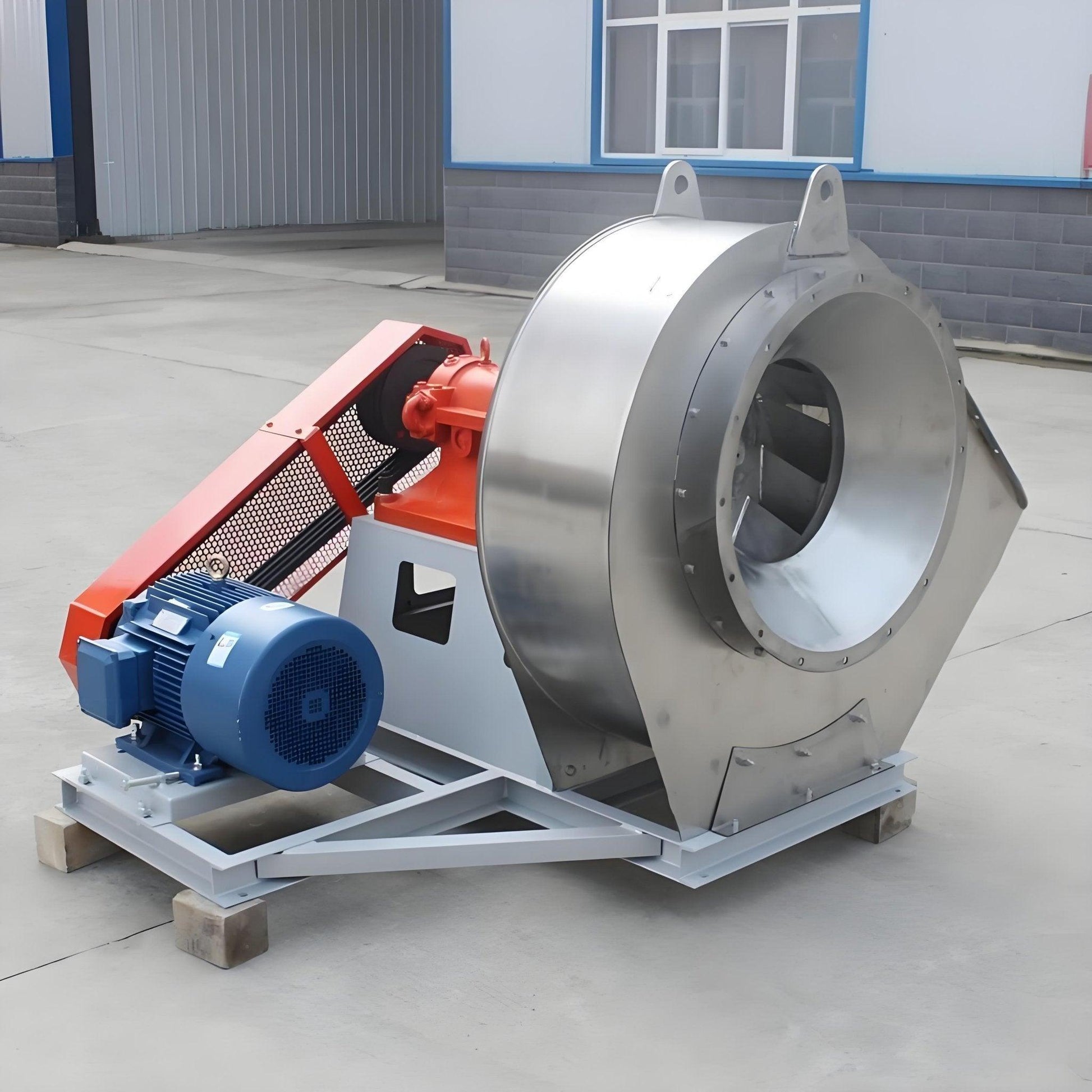

Induced Draft Fan
Induced Draft Fan
Share
An Induced Draft Fan (ID Fan) is a critical component in industrial systems, particularly in combustion processes such as boilers and furnaces. It creates a negative pressure within the combustion chamber, effectively drawing flue gases out of the system and ensuring efficient combustion and emissions control.
Key Features
-
Negative Pressure Generation:
ID Fans operate by generating a vacuum that pulls exhaust gases from the combustion chamber, facilitating the removal of flue gases through the stack or chimney. -
High Efficiency:
These fans are designed to handle high temperatures and corrosive gases, achieving high operational efficiency while maintaining system pressure. -
Durable Construction:
Built to withstand harsh operating conditions, ID Fans are typically constructed from robust materials that resist wear and corrosion. -
Variable Speed Control:
Many models come with variable frequency drives (VFDs) that allow for precise control of airflow based on operational demands. -
Versatile Applications:
Commonly used in power plants, waste incineration facilities, and industrial boilers to manage exhaust gases effectively.
Working Process
- Air Intake: The fan draws ambient air into the system.
- Exhaust Gas Removal: It creates negative pressure that pulls flue gases from the combustion chamber through ducts.
- Discharge: The gases are expelled through a stack or flue, ensuring compliance with environmental regulations.
