Disc Type Granulator
Disc Type Granulator
Share

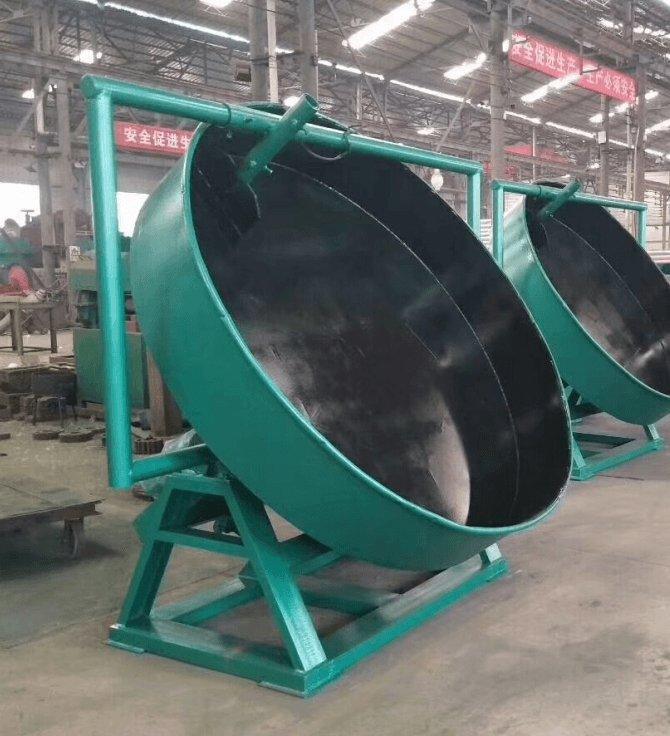

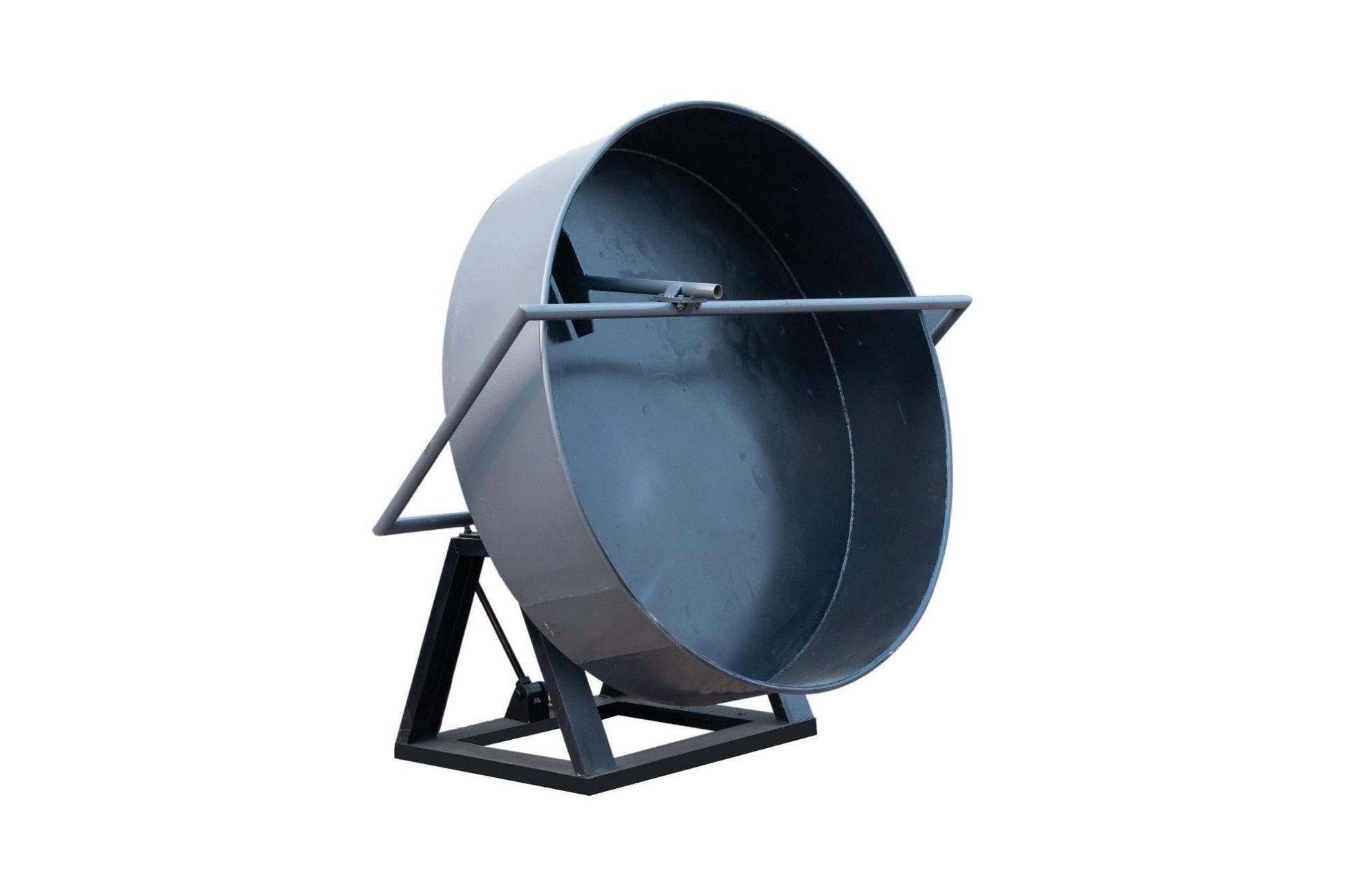

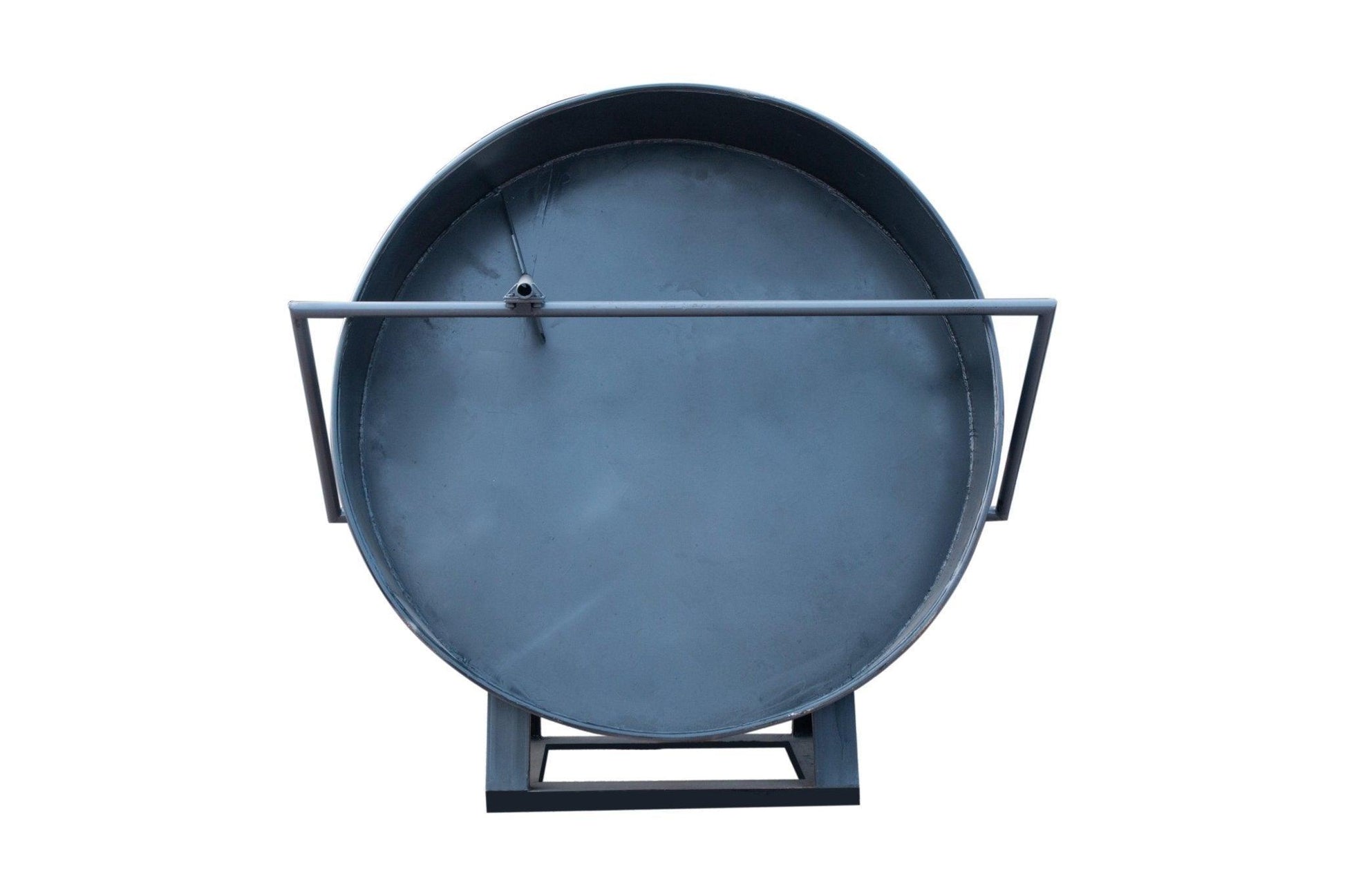

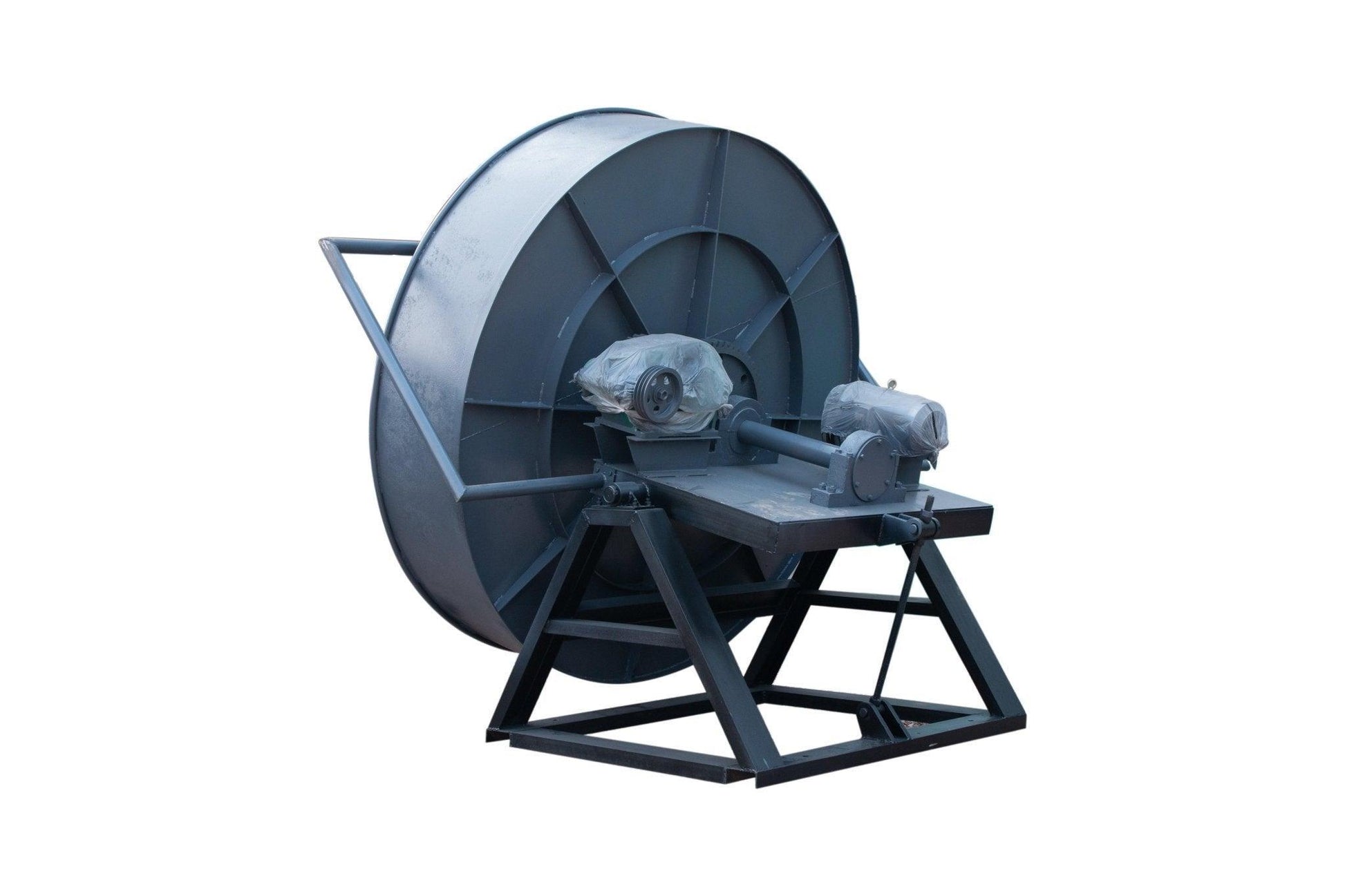

The Disc Type Granulator, also known as a pan granulator, is a vital piece of equipment in the production of fertilizers, particularly organic and compound fertilizers. It efficiently converts powdered materials into uniform, round pellets through a wet granulation process.
Key Features
-
High Granulation Rate:
The disc structure allows for a granulation rate exceeding 93%, ensuring effective pellet formation. -
Robust Design:
Constructed with durable materials, including reinforced steel plates and corrosion-resistant linings, the granulator is designed for longevity and stability. -
Adjustable Disc Angle:
The angle of the disc can be adjusted (typically between 40° to 55°) to control the size of the pellets produced, enhancing operational flexibility. -
Efficient Mixing:
The rotating disc tumbles the material, allowing for even mixing and optimal binding with added liquids, which aids in pellet formation. -
User-Friendly Operation:
Designed for easy operation and maintenance, it features intuitive controls and an automatic cleaning system to minimize material sticking.
Working Process
- Material Loading: Raw materials are fed into the rotating disc.
- Granulation: As the disc rotates, materials tumble and stick together due to added moisture, forming pellets.
- Discharge: Once the desired pellet size is achieved, granules are discharged through centrifugal force.
